CMP Auto Engineering

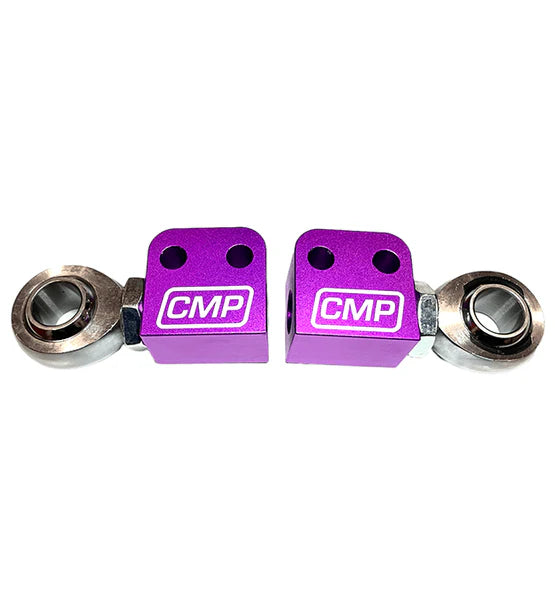

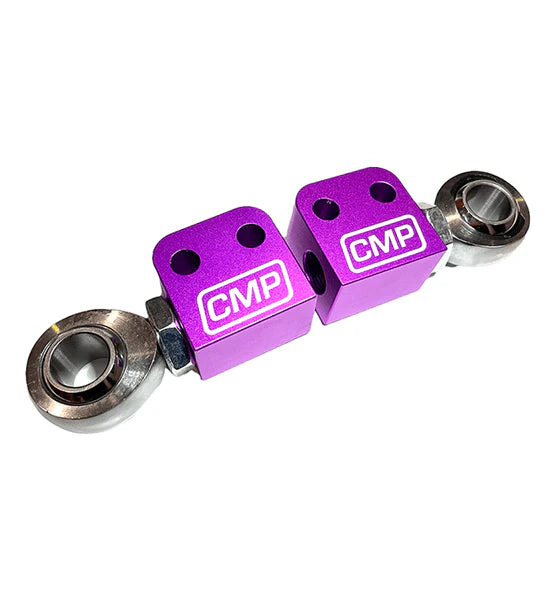

E30/E36 Adjustable Front Control Arm Mount

E30/E36 Adjustable Front Control Arm Mount

Regular price $147.00 USD
Regular price Sale price $147.00 USD
Sale Sold out

Fits: All E30 & E36 Non-M, E30 & E36 M3 (stock control arms).

-Allows front caster to be adjusted (suspension tune-ability)
-Provides constant suspension geometry (stability)
-No deformation under braking (driver control)
-Free pivoting spherical bearing (no suspension binding)
Note: A bearing mounted front control arm bush will increase Ride Harshness however, only when contacting road imperfections (e.g. pot holes, reflectors etc.)

-6061-T6 Aluminium - Anodised Purple
-Chromoly steel 2-piece, Teflon lined M20 rod ends + Jam nuts

If you're wanting to maximise the performance of your E30/E36 then our Adjustable Rod End Caster Bushings are a perfect addition to help you dial in your front suspension.
This bushing eliminates the weak and very flexible front control arm bushes in favour of a solid connection for greater link rigidity with no suspension binding in addition to providing a significant range of caster adjustment to perfect your setup.
