CMP Auto Engineering

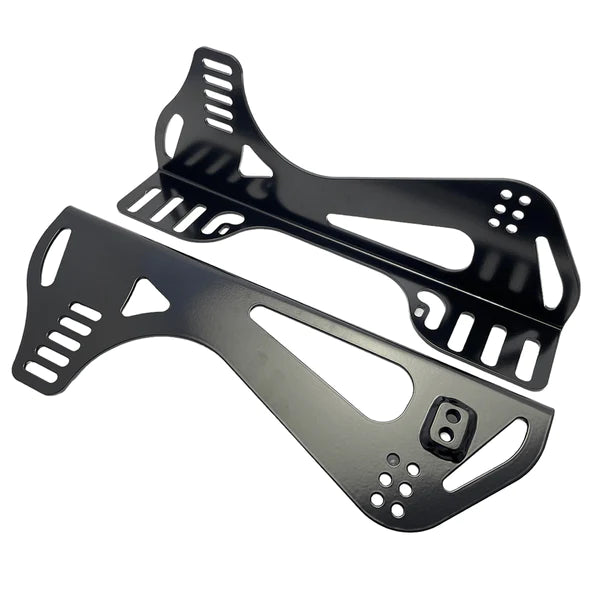

E36/E46 Bucket Seat Mounts

E36/E46 Bucket Seat Mounts

Regular price $198.00 USD
Regular price Sale price $198.00 USD
Sale Sold out

Fits: All E36 & E46 3-series & E8X Z4's

Benefits:
-Solid one piece construction between seat & chassis (driver feedback)
-lower seating position (tall driver compatible)
-More centered seating position
-Weight reduction
-Accepts factory seat belt and bolt
Note: Fixed back bucket seats and their installation require certification in Australia to be street legal.

Dimensional Requirements:
-Side Mount Hole Centre Distance - Min = 284mm, Max = 293mm
(Suits Recaro, Sparco, Velo and many others)
-E36 Seat Width Range - Min = 395mm, Max = 420mm
-E46 Seat Width Range - Min = 390mm, Max = 440mm
Note: Seating position and height are adjusted using the slots and holes at the base and side of the mount.

Recommendations:
-We also offer a Universal Fire Extinguisher Mount to suit our seat mounts to fit an extinguisher between the seat and door for accessibility and egress.

Material:
-4mm Thick 350MPa Yield Mild Steel - Powder Coated Black

-Fasteners included

If you're looking to get into track driving, a bucket seat mount is one of the best mods you can make to stop sliding around on factory seats in the bends. A fixed back bucket seat will support you as well as position you lower and more centre in the car. The increased rigidity between you and the chassis also massively boost feedback to you the driver to better control the vehicle.

Refined over many Finite Element Analysis (FEA) iterations, these seat mounts weigh a total of 3.4kg (7.5lb) and can support a 16kN rear impact simulation and 14kN belt tension without yielding as required by Australian Design Rules (ADR's) and Confederation of Australian Motorsport (CAMS) regulations.
