E8X/E9X/F2X/F3X Adjustable Guide Arms
E8X/E9X/F2X/F3X Adjustable Guide Arms
Couldn't load pickup availability
Fits:
All E8X & E9X Non-M, E82 1M & E9X M3
All F2X & F3X Non-M's & M-Sports 1/2/3/4 Series BMW's
Benefits:
-Increases rear adjustment (Suspension Tune-ability)
-Provides consistent geometry (stability)
-Free pivoting spherical bearing (no suspension binding)
Note: A bearing mounted upper guide arm will make a small increase in NVH.
Options:
- No rod ends boots, bearing exposed to elements
- Yes rod end boots, to seal the bearing from moisture & dirt ingress
Material:
-6061-T6 Aluminium - Anodised Black (control arm)
-304 Stainless Steel (bearing spacers)
-Chromoly steel 2-piece, Teflon lined rod ends + Jam nuts
If you're looking to maximise the handling on your BMW, billet adjustable guide arms are a great addition to achieve track capable grip.
By using a bearing mounted arm you eliminate unwanted bushing flex providing far more consistent rear suspension geometry when cornering.
Rubber rod end boots will seal the bearings from the elements and brake dust to maximise the bearings lifespan.

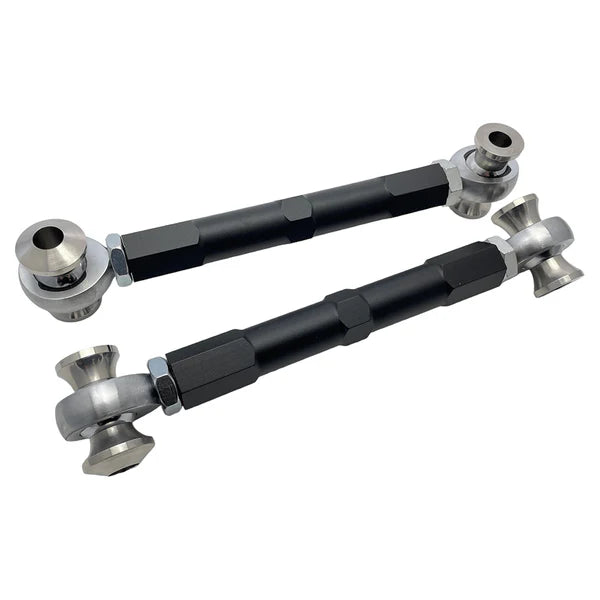

![E8X/E9X/F2X/F3X Adjustable Guide Arms](http://modhausmotorsports.com/cdn/shop/files/E8XE9XF2XF3XAGA-1-min_68825d55-702e-4229-95e0-b500ec6ae0b0_grande_png.webp?v=1712766841&width=1445)

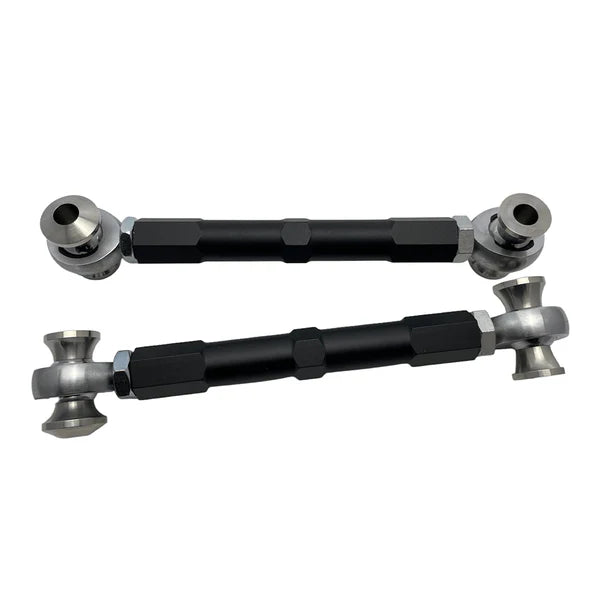

![E8X/E9X/F2X/F3X Adjustable Guide Arms](http://modhausmotorsports.com/cdn/shop/files/E8XE9XF2XF3XAGA-2-min_dfb11dfd-493b-4cc0-be5b-1de5471f7351_grande_png.webp?v=1712766850&width=1445)

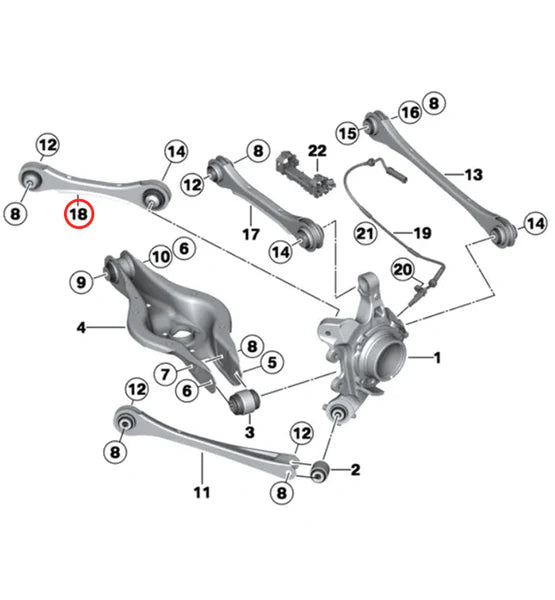

![E8X/E9X/F2X/F3X Adjustable Guide Arms](http://modhausmotorsports.com/cdn/shop/files/F2XF3XAGA-Diagram-min_grande_png.webp?v=1712766862&width=1445)

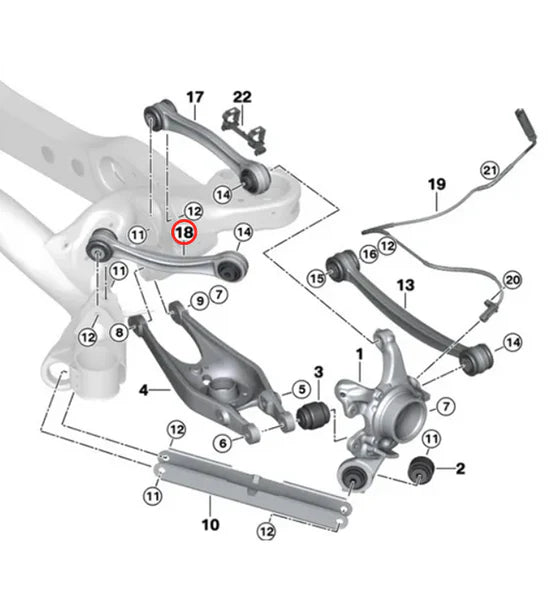

![E8X/E9X/F2X/F3X Adjustable Guide Arms](http://modhausmotorsports.com/cdn/shop/files/E8XE9XAGA-Diagram_grande_png.webp?v=1712766911&width=1445)
