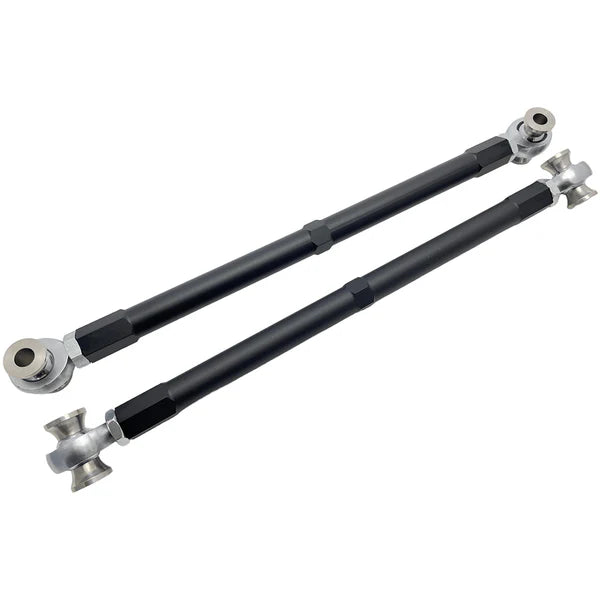

E9X/E82 1M & M3 Adjustable Toe Arms
E9X/E82 1M & M3 Adjustable Toe Arms
Fits: All E9X M3's and E82 1M BMW's.
Benefits:
-Increases rear toe adjustment (Suspension Tune-ability)
Note: A bearing mounted toe arm will not increase NVH.
Options:
- No rod ends boots, bearing exposed to elements
- Yes rod end boots, to seal the bearing from moisture & dirt ingress
Material:
-6061-T6 Aluminium - Anodised Black (round bar & bearing spacers)
-Chromoly steel 2-piece, Teflon lined rod ends + Jam nuts

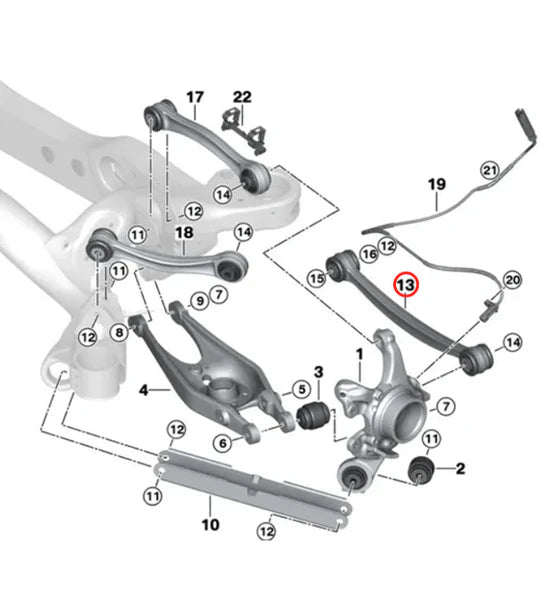

Unlike other BMW models, the E9X M3 & E82 1M already have solid mounted toe arms using factory ball joints. As a result, these arms don't offer a significant performance upgrade like it does for the Non-M's of this generation and newer BMW's.
As a result, we do not suggest upgrading this arm on a street driven car. These are suitable for track driven cars that need a wider range of adjustment and more precise control of their toe geometry. We would suggest pairing these with a toe lockout kit to prevent slippage in factory eccentrics.
Rubber rod end boots will seal the bearings from the elements and brake dust to maximise the bearings lifespan.
