CMP Auto Engineering

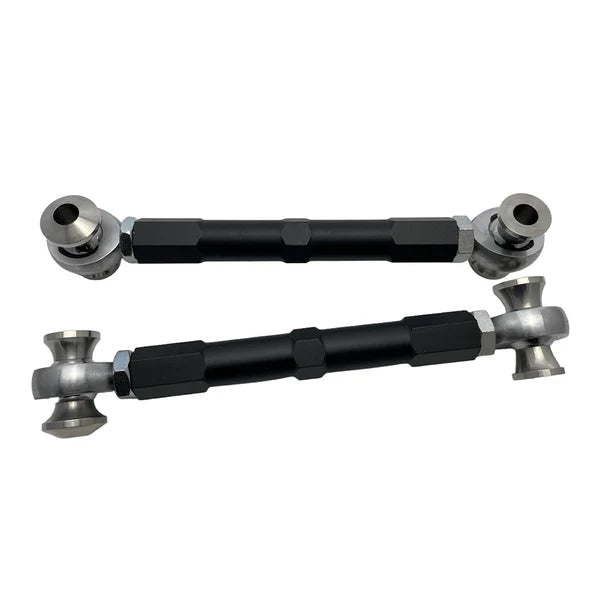

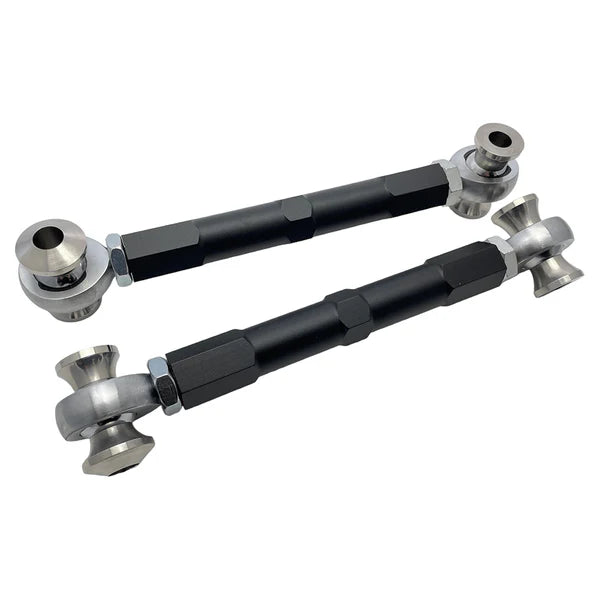

F2X/F3X Adjustable Camber Arms
F2X/F3X Adjustable Camber Arms
Fits: All F2X & F3X Non-M's & M-Sports 1/2/3/4 Series BMW's
Benefits:
-Increases rear camber adjustment (Suspension Tune-ability)
-Provides consistent camber geometry (stability)
-Free pivoting spherical bearing (no suspension binding)
Note: A bearing mounted upper camber arm will not increase NVH.
Options:
- No rod ends boots, bearing exposed to elements
- Yes rod end boots, to seal the bearing from moisture & dirt ingress
Material:
-6061-T6 Aluminium - Anodised Black (control arm)
-304 Stainless Steel (bearing spacers)
-Chromoly steel 2-piece, Teflon lined rod ends + Jam nuts
If you're looking to maximise the handling on your BMW, adjustable camber arms are a critical upgrade to achieve track capable rear camber.
By using a bearing mounted arm you eliminate unwanted bushing flex providing far more consistent camber geometry when cornering.
These Adjustable Camber Arms allow roughly an additional +3.5° of positive camber and over -3.5° negative camber over the factory eccentric bolts.
Rubber rod end boots will seal the bearings from the elements and brake dust to maximise the bearings lifespan.
