Stage 3 - E46 Front Bolt In RACP Brace

Stage 3 - E46 Front Bolt In RACP Brace

Regular price $198.00 USD
Regular price Sale price $198.00 USD
Sale Sold out

Fits: All E46 coupe's (Non-M & M3) and sedan chassis with split folding rear seats

Benefits:

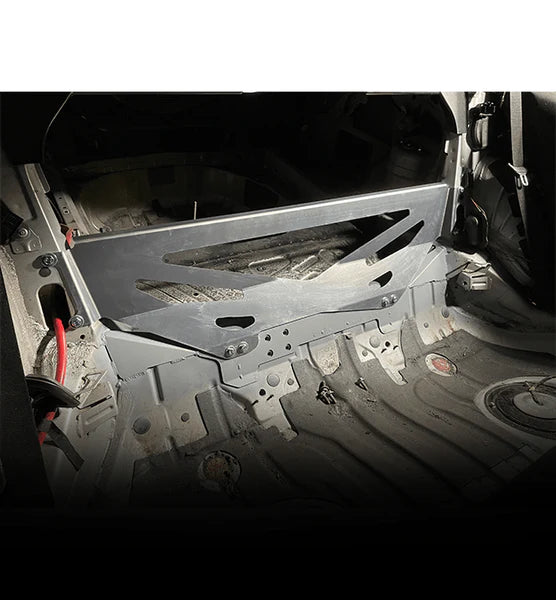

-Braces the rear bulk head with the front two, rear subframe mounts

-Significantly increases torsional chassis rigidity
-Light weight aluminium construction
-Requires only 2 holes drilled to install

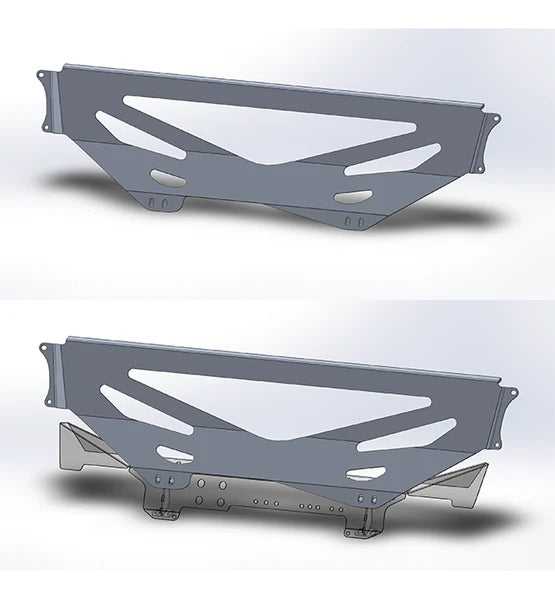

Note: Requires Stage 2 - E46 Front Weld In RACP Beam installed prior.

Material:
-3mm Thick 190MPa Yield Aluminium - Raw
-Fasteners included

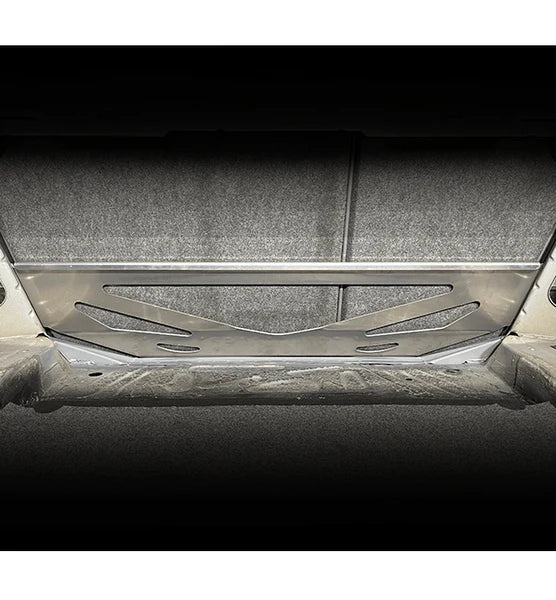

Weighing only 1.6kg (3.5Lb) this brace is designed to mimic the dividing wall in most E46 sedans that contributed a 33% increase in torsional rigidity over their coupe counterparts.

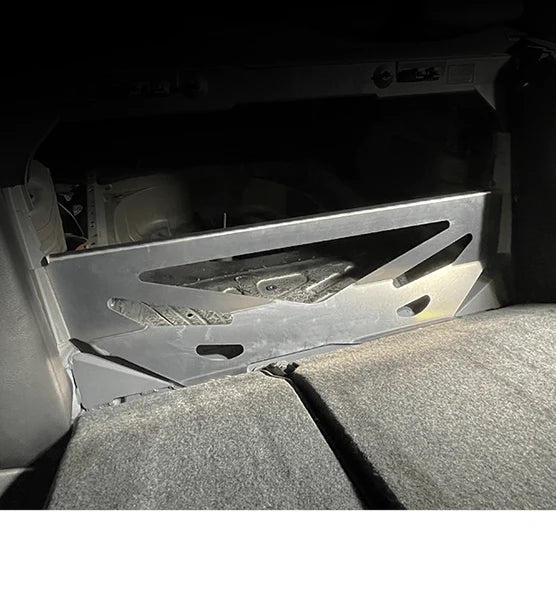

This bolt in structure is the ultimate solution to increasing torsional rigidity with minimal weight compromise while further reinforcing the front two, rear subframe mounts on the E46 chassis. Best of all, this brace is designed to fit flush against the rear seats in their upright position sacrificing no cabin or boot space in the process!
